Eight Door Controller with Lock Power
Integrated power for all of the panels, readers and locks

A8P

NDAA Compliant
ETL

Description

Panel Features

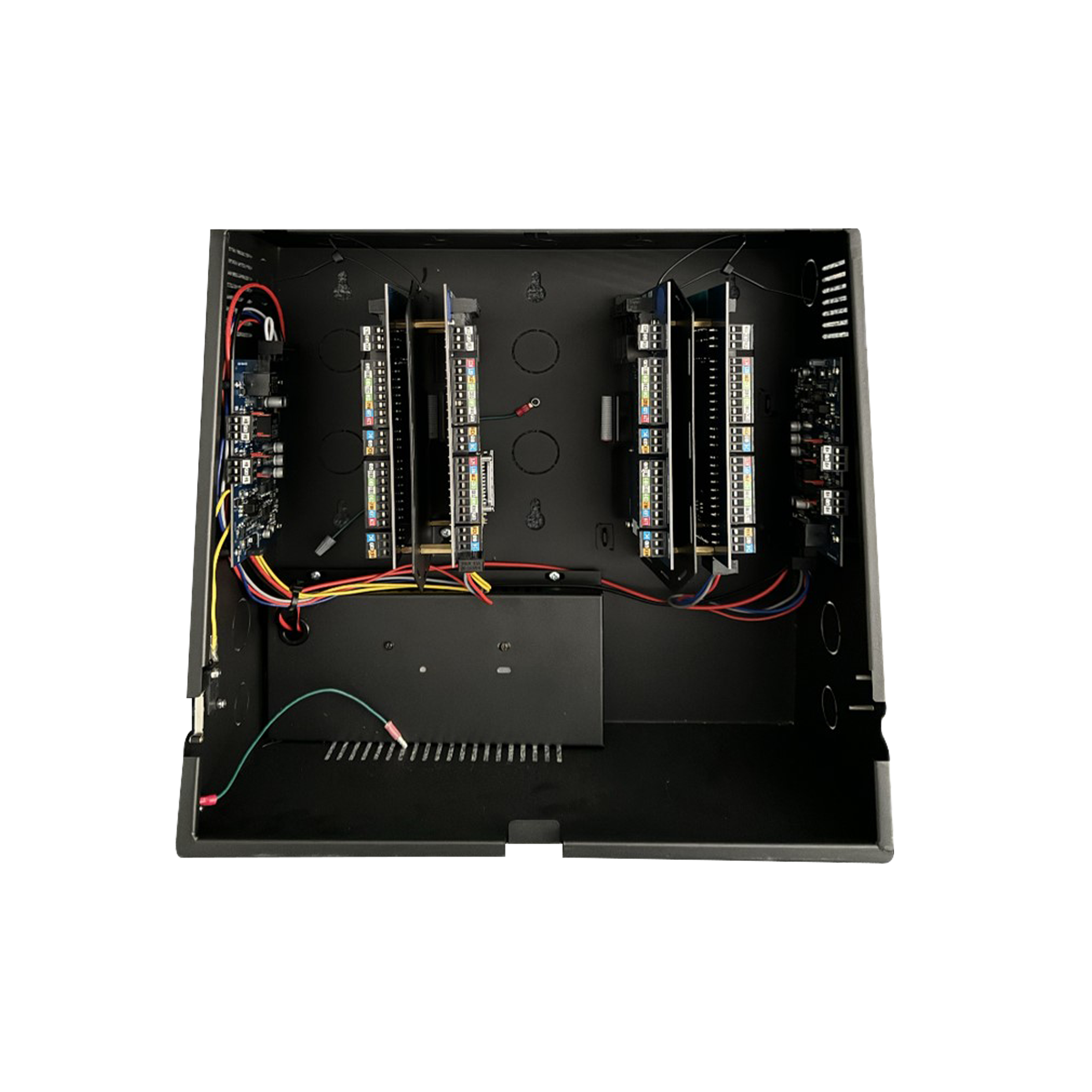

  • Equivalent to having two A2E4Ps in one can

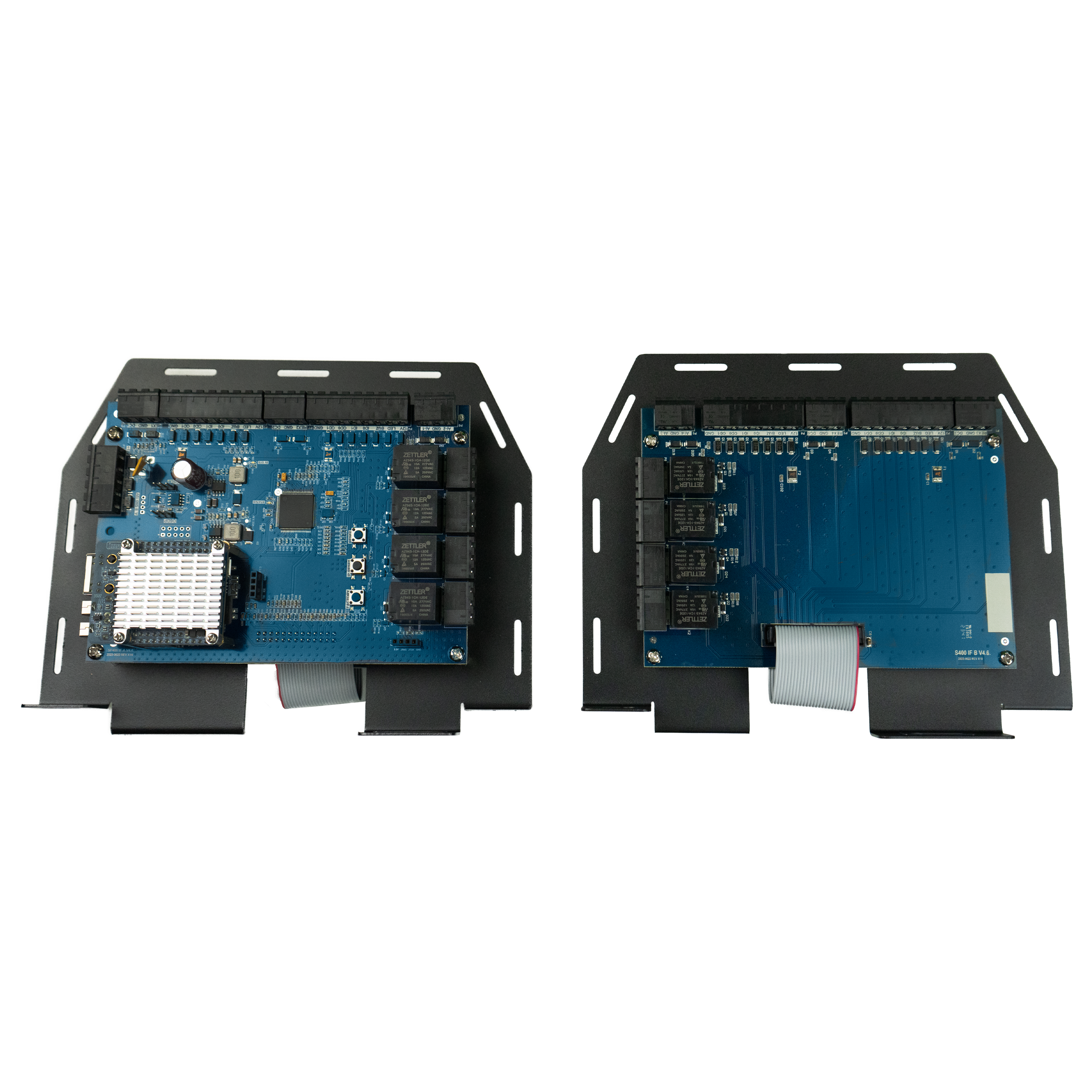

  • Contains two 4-door modules in one housing ​
  • Each module can function as a “Server”, “Client” or “Elevator” ​
  • Integrated 150-Watt power supply for complete system power​

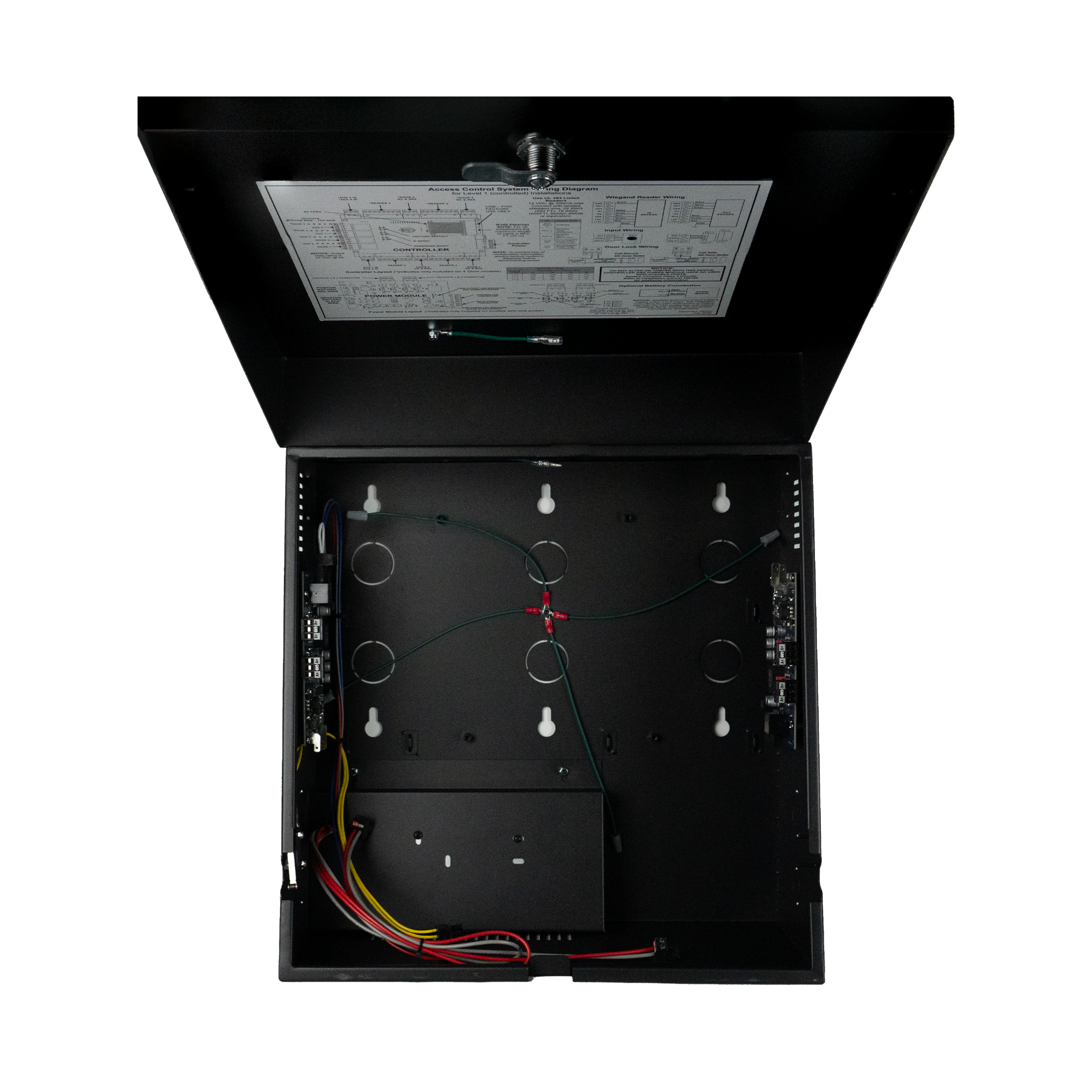

  • Wedge – Open enclosure design provides easy access to wiring​
  • Lid removal disconnect pins for fast access to hardware​
  • Tie downs support dual sided strapping for wire management
  • Cut Back Housing allows for wiring accessibility
    and easier to see your work​
  • Mounting bar has wiring tie down slots for wire management
    on both sides of bar
  • ETL – UL 294 ​
  • 5 year hardware warranty



Lock Power

  • Lock power located on left  / right sides​

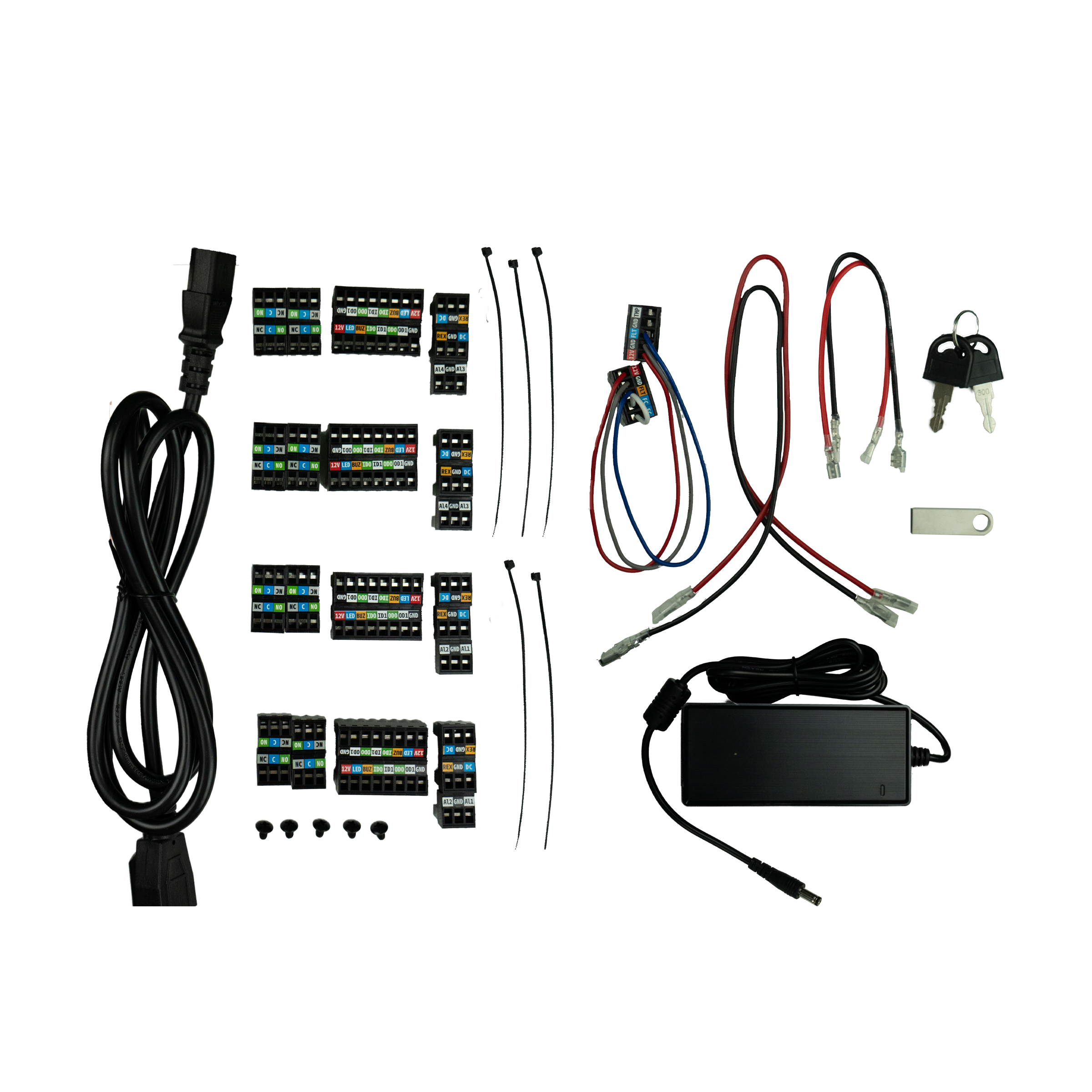

  • 5’ IEC Cord Included​
  • 8 Auto Resetting Fused Outputs​
  • Isolated power for readers & controller​
  • Selectable 12 or 24 VDC per output​
  • LED status for voltage, power short and fire input triggered​
  • Fire Drop Input​
  • Power Supervision – log and action​
  • Battery Backup (batteries not included)​
  • Battery Backup for 12- and 24-volt  outputs
